Design and detailed documentation for project of platforms

For clinet from food industry the design with documentation of platforms were done.

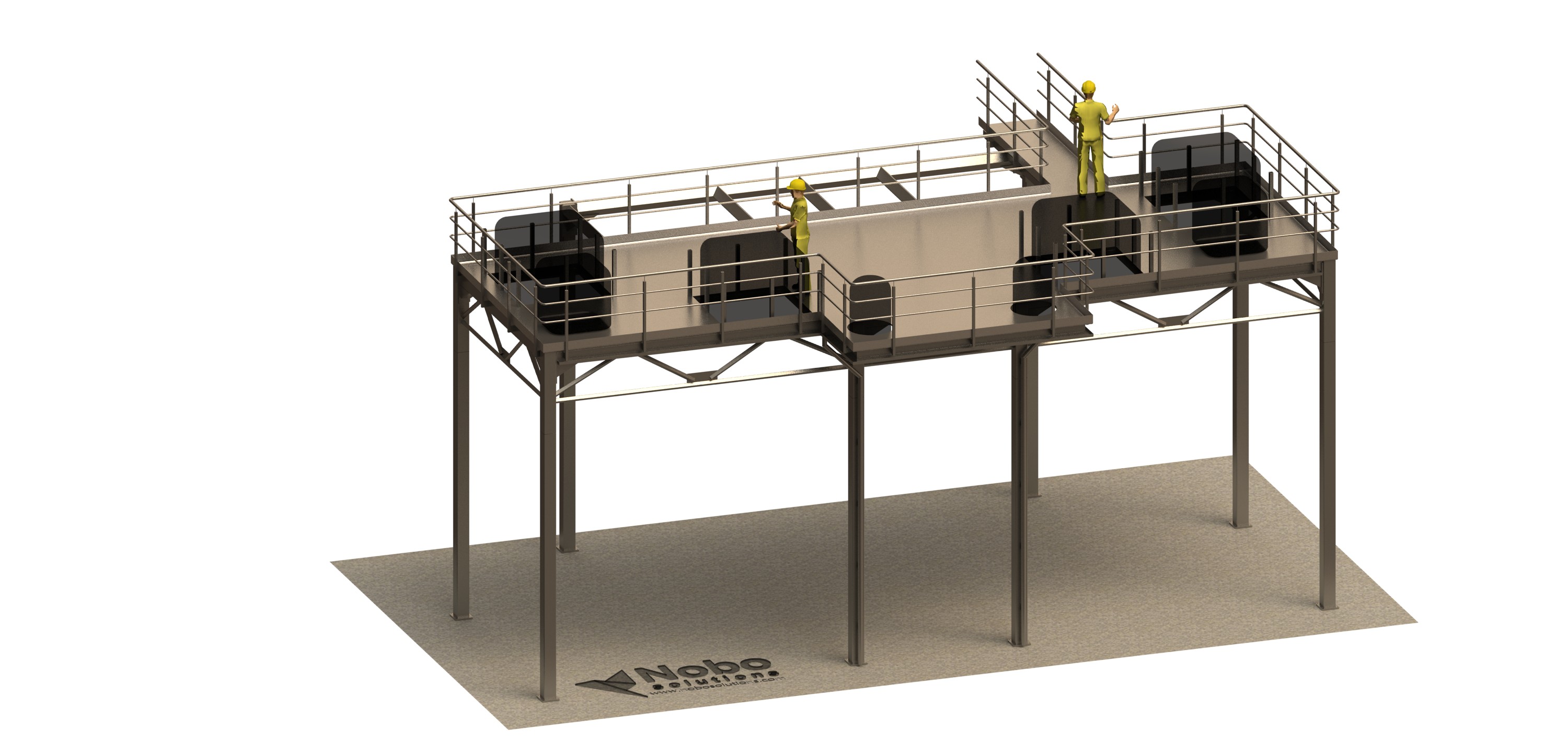

Model 3D platformy

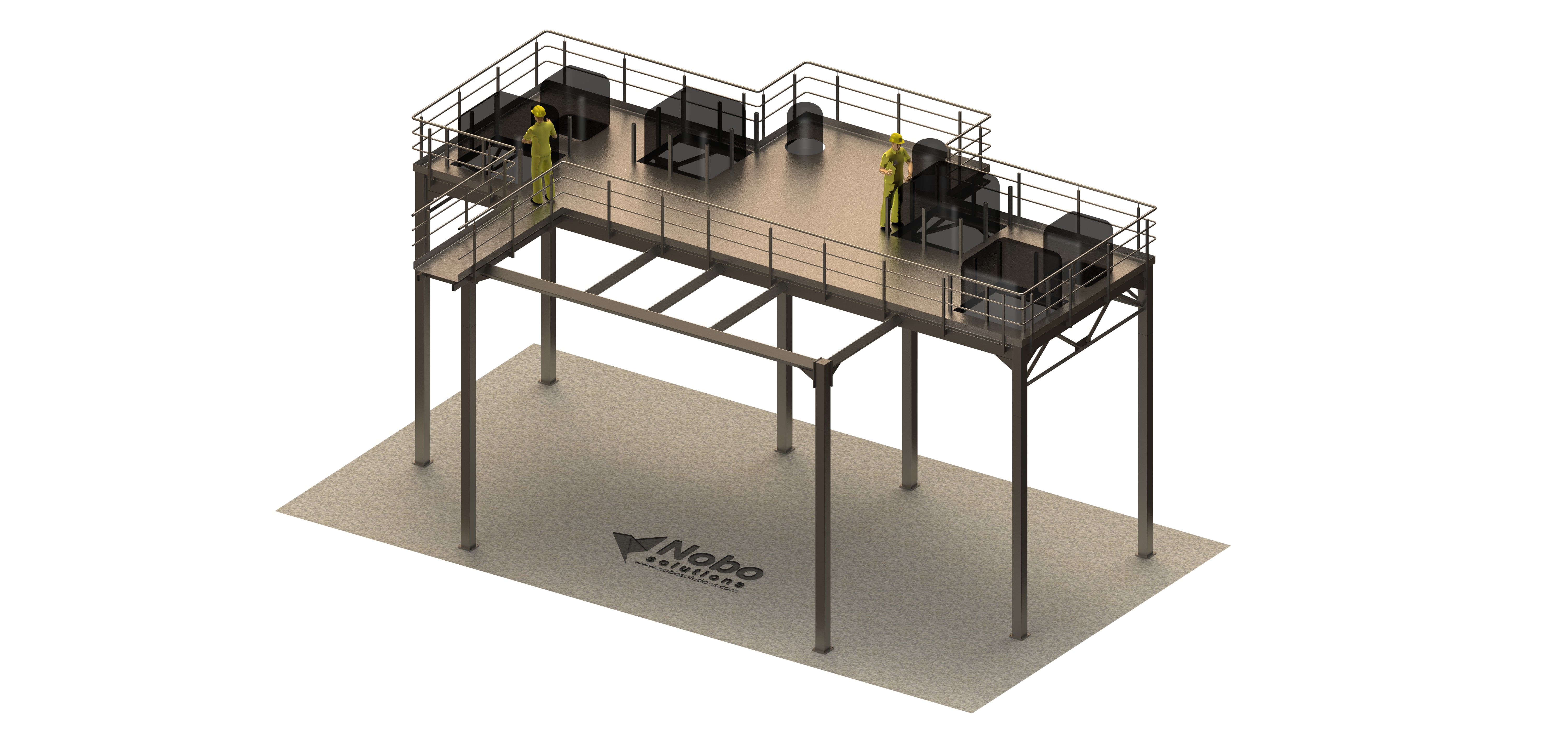

Model 3D platformy

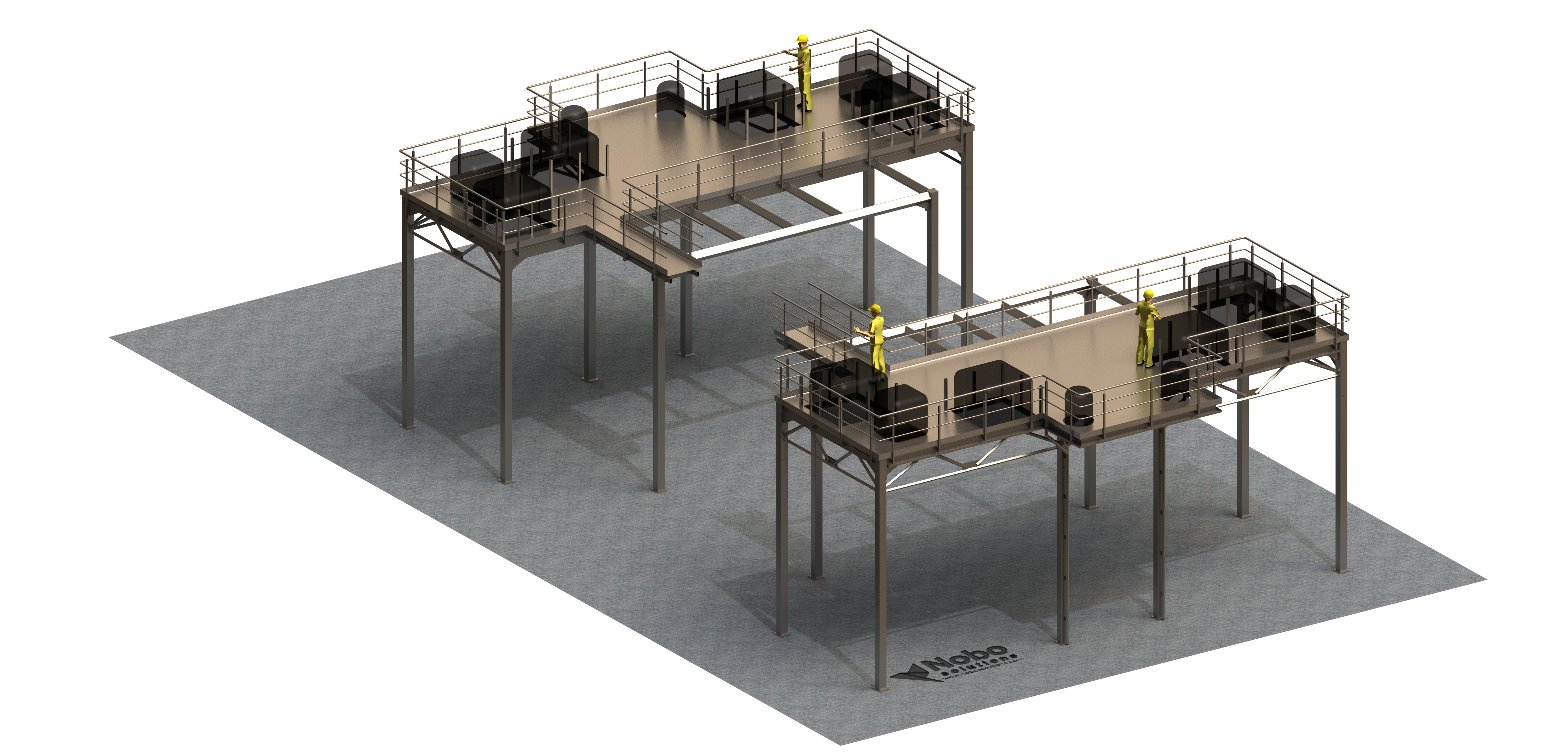

Model 3D platformy

Opis projektu testowego

Scope of work:

  • basic engineering
  • analysis with respect to loads (machines)
  • detailed engineering documentation (CAD)
  • desing made of stainless steel with approx. 22 t weight
